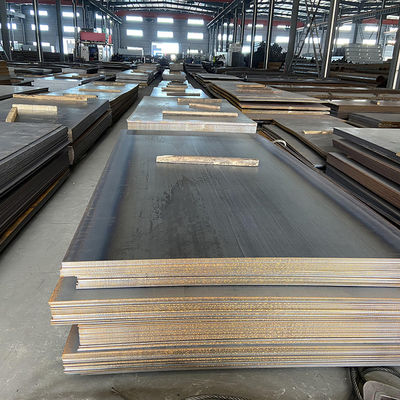

Hot Rolled Carbon Steel Plate Mild Steel Plate A36 ASTM A572 Grade 42 S275

Place of Origin Jiangsu,China
Brand Name TISCO
Certification CE, ROHS, JIS, GS, ISO9001
Model Number ASTM, AiSi ASTM
Minimum Order Quantity 1 Ton
Delivery Time 7~10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000 Ton/Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Carbon Steel Plate Delivery Conditon HR,CR,AR,Q+T,N+T,N,TMCP,UT,Z Direction
Thickness 1.1mm~160mm Width 1500mm/2200mm/2500mm
Length 6000-13500mm
High Light

a36 Carbon Steel Plate

,

a36 mild steel plate 1.0347

,

hot rolled carbon steel plate 1.0347

Leave a Message
Product Description
ASTM A572 STEEL PLATE
Grades
Carbon steel is an alloy of iron and carbon, often with other elements in small percentages that affect the properties of the final product.
A few of the most common grades of steel plates and sheets are:
A36 - a low carbon steel with good strength, formability that can be securely welded with a minimum yield strength of 36,000 PSI
A572-50 - higher strength steel with a minimum yield of 50,000 PSI and increased corrosion resistance
A516-70 - steel with a minimum tensile strength of 70,000 PSI that is generally used in pressure vessels and boilers
AR400 - abrasion resistant, quenched and tempered alloy steel with a high level of hardness, making it brittle and so it is not intended for structural applications
A588 - also known as Corten, this steel weathers well, forming a stable rust-like appearance that eliminates the need for painting
A1011 - a hot-rolled carbon steel alloy primarily used for sheets with high strength and formability
There are many other grades of steel plates and sheets with specialized properties. If you need it, we can get it!
Yield strength is the amount of force that can be withstood before permanent deformation. Tensile strength is the amount of force required to pull something (like a sheet of steel) to the point where it breaks.



ASTM A572 steel plate is a popular grade of high-strength low-alloy (HSLA) steel that is typically used in structural applications. A572 steel contains chemical alloys that enhance the material’s hardness and ability to bear weight, and this material is lightweight relative to steel grades with similar compositions.

There are five different grades of A572 steel plate: Grade 42, Grade 50, Grade 55, Grade 60 and Grade 65. Each of these grades have slight differences in their mechanical properties and chemical compositions, which may make them more fitting for certain applications. A572-50, however, is the most common A572 grade.



EQUIVALENT GRADE OF ASTM A572 Grade 42

ASTM/ASME/SAE

Europe

EN 10025

Germany

DIN

Italy

UNI

Japan

JIS

China

GB

A572 Gr.42 S275 ST44-3 FE430 - -



CHEMICAL COMPOSITION

ASTM A572 Gr50 Plate Chemical Composition
Element C Si Mn P S Ni
Content 0.21% 0.40% 1.35% 0.04% 0.05% 0.015%



APPLICATIONS

A572 material is widely used in engineering structures, construction steel structures, construction machinery, mining and mountain machinery, trucks, bridges, pressure vessels, etc., especially for construction and engineering machinery components that require good weldability and toughness. For example, riveted or bolted structures or welded structures for bridges and other applications.
