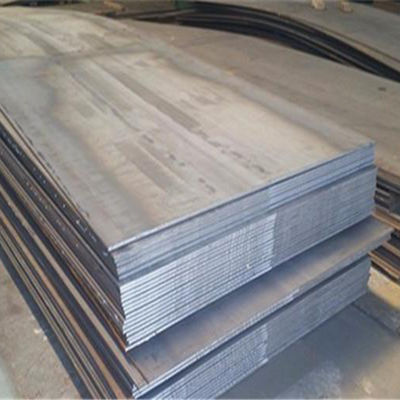

S235JR Hot Rolled Carbon Steel Plate Astm A283 Grade C 8x4 Mild Steel Sheet Metal 2mm
| Place of Origin | Jiangsu,China |
|---|---|
| Brand Name | TISCO |
| Certification | CE, ROHS, JIS, GS, ISO9001 |
| Model Number | ASTM, AiSi ASTM |
| Minimum Order Quantity | 1 Ton |
| Delivery Time | 7~10 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 5000 Ton/Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Carbon Steel Plate | Delivery Conditon | HR,CR,AR,Q+T,N+T,N,TMCP,UT,Z Direction |
|---|---|---|---|
| Thickness | 4mm~400mm | Width | 1500mm/2200mm/2500mm |
| Length | 4000-12000mm | ||
| High Light | s235jr Carbon Steel Plate,astm a283 Carbon Steel Plate,astm a283c 8x4 |
||
Product Description
Astm a283 CARBON STEEL PLATE
Mild steel is a type of carbon steel with a low amount of carbon – it is actually also known as “low carbon steel.” Mild steel is not an alloy steel and therefore does not contain large amounts of other elements besides iron; you will not find vast amounts of chromium, molybdenum, or other alloying elements in mild steel. Less carbon means that mild steel is typically more ductile, machinable, and weldable than high carbon and other steels, however, it also means it is nearly impossible to harden and strengthen through heating and quenching. The lack of alloying elements such as those found in stainless steels means that the iron in mild steel is subject to oxidation (rust) if not properly coated. It is the affordability, weldability and machinability that make it such a popular choice of steel for consumers.
A283 Grade C is a kind of common carbon steel material with low or mid-low tensile . They are four grades or levels in the standard ASTM A283,they are GR A/B/C/D.carbon structural steel plate A283 Grade C are mainly used in heavy industry and oil plants for built steel tanks and vessels.It is good in welding and economic for useage.
EQUIVALENT GRADE OF ASTM 283 Grade C
|
ASTM |
Germany DIN |
China GB |
Japan JIS |
| A36 | ST37-2 | Q235 | SS400 |
CHEMICAL COMPOSITION
| Element | Carbon,C | Copper,Cu | Manganese,Mn | Ohosphorous,P | Silicon,Si | Sulfur,S |
| A283 Grade A | 0.14%Max | 0.20%Max | 0.90%Max | 0.035%Max | 0.15~0.40% | 0.04%Max |
| A283 Grade B | 0.17%Max | 0.20%Max | 0.90%Max | 0.035%Max | 0.15~0.40% | 0.04%Max |
| A283 Grade C | 0.24%Max | 0.20%Max | 0.90%Max | 0.035%Max | 0.15~0.40% | 0.04%Max |
| A283 Grade D | 0.27%Max | 0.20%Max | 0.90%Max | 0.035%Max | 0.15~0.40% | 0.04%Max |
HEAT TREATMENT
It can be heat treated at the following temperatures:
- Normalizing at 899°C – 954°C (1650°F-1750°F)
- Annealing at 843°C – 871°C (1550°F-1600°F)
- Stress relieving at 677°C – 927°C (1250°F-1700°F)
- Carburizing at 899°C – 927°C (1650°F-1700°F)
- Hardening at 788°C – 816°C (1450°F-1500°F)
