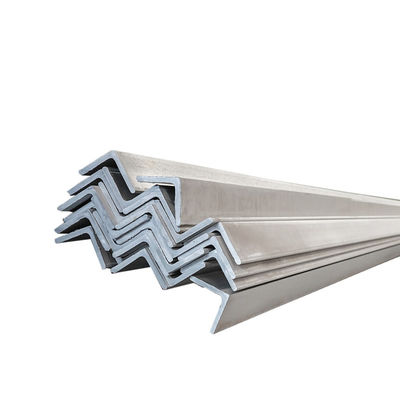

Welding Stainless Steel Structural Sections Equal Stainless Steel Angle Bar 304 304N S32305 410 204C3

Place of Origin JIANGSU, CHINA
Brand Name TISCO
Certification CE, ROHS, JIS, GS, ISO9001
Model Number ASTM, AiSi ASTM
Minimum Order Quantity 1 Ton
Price $1,300.00/Tons
Packaging Details Industry seaworthy wooden package or as customer's requirements
Supply Ability 5000 Ton/Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard AiSi Type Equal
Model Number 310S, 410, 316Ti, 316L, 316, 321, 410S Processing Service Bending, Welding, Decoiling, Punching, Cutting
Surface Finish 2B Shape Equal Angle Bar
Grade 200 Series 300 Series 400 Series Application Construction, Building Construction Material
Tolerance ±1% Steel Grade 301L, S30815, 301, 304N, 310S, S32305, 410, 204C3, 316Ti, 316L, 441
Product Name 304 Stainless Angle Steel Bar Technique Hot Rolled Cold Rolled
Material 200 Series/300 Series/400series Payment Terms 30%T/T Advance + 70% Balance
Length 6-12m Or Customer's Requiremnts
High Light

304n Stainless Steel Structural Sections

,

316ti Stainless Steel Structural Sections

,

angle bar stainless steel 304

Leave a Message
Product Description

Factory Price AISI 201 304 316 Stainless Steel Angle Bar 40x3 45x4 50x5 SS Angle Bar With Stock



Angle Steel is a long strip of steel with two sides perpendicular to each other and forming an angle. There are two types of angles: equal Angle Steel and unequal angle steel. The two sides of an equilateral angle steel have equal widths. Its specifications are based on edge width × Edge width × The thickness of the edge is expressed in millimeters. As shown in "ě 30 × thirty × 3 "refers to an equilateral angle steel with an edge width of 30 millimeters and an edge thickness of 3 millimeters. It can also be represented by a model, which is the number of centimeters of the edge width, such as {3 #. The model does not represent dimensions with different edge thicknesses within the same model. Therefore, the edge width and thickness dimensions of the Angle Steel should be fully filled in the contract and other documents to avoid using the model alone. The specifications of hot-rolled equilateral angle steel are 2 # -20 #. Angle steel can be used to form various load-bearing components according to different structural requirements, and can also be used as a connection between components. Widely used in various building and engineering structures, such as beams, bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks, and warehouses





We produce and distribute hot rolled and laser fused stainless steel angles throughout the world in both imperial and metric sizes. Please select the catalog for your region below to view a list of available standard size angles. Our range of capabilities far exceeds standard sections, though. We are a profile solutions company, and custom shapes, sizes and alloys are available upon request. If you do not see what you are looking for, please contact us, and our experienced staff will help guide you with your custom profile needs. If you can dream it up, chances are we can make it.



Product Name
stainless steel angle steel
Type
Stainless steel profile
Material (ASTM UNS)
201 202 304 304L 309s 310s 316 316L 316TI 317L 321 904L S32205
Standard
JIS/SUS/GB/DIN/ASTM/AISI/EN
Surface Finished
No.1 No.3 No.4 HL 2B BA 4K 8K 1D 2D
Technique
Cold Drawing or Hot Rolled or Casting
Packing
Standard Seaworthy Package or according to customer's requirements
Delivery Time
within 7-21 working days after reveiving the deposit or according to your order quantity
Package
Plywood Case/Pallet or Other Export Package Suitable for Long Distance Shipping



item
value
Standard
AiSi
Grade
200 series 300 Series 400 series
Type
Equal
Application
Construction
Place of Origin
China

Jiangsu
Brand Name
Tisco
Model Number
310S, 410, 316Ti, 316L, 316, 321, 410S, 410L, 430, 309S, 304
Tolerance
±1%
Processing Service
Bending, Welding, Decoiling, Punching, Cutting
Steel Grade
301L, S30815, 301, 304N, 310S, S32305, 410, 204C3, 316Ti, 316L, 441, 316, L4, 420J1, 321, 410S, 410L, 436L, 443, LH, L1, S32304, 314, 347, 430, 309S, 304, 439, 204C2, 425M, 409L, 420J2, 436, 445, 304L, 405, 370, S32101, 904L, 444, 301LN, 305, 429, 304J1, 317L
Surface Finish
2B
Invoicing
by actual weight
Delivery Time
within 7 days
Product name
304 Stainless Angle Steel Bar
Shape
Equal Angle Bar
Technique
Hot Rolled Cold Rolled
MOQ
1 Ton
Material
200 Series/300 Series/400series
Package
Customer Request
Payment terms
30%T/T Advance + 70% Balance
Sample
Provide
Length
6-12m or customer's Requiremnts
Application
Building Construction Material





Product Name
stainless steel angle steel
Type
Stainless steel profile
Material (ASTM UNS)
201 202 304 304L 309s 310s 316 316L 316TI 317L 321 904L S32205
Standard
JIS/SUS/GB/DIN/ASTM/AISI/EN
Surface Finished
No.1 No.3 No.4 HL 2B BA 4K 8K 1D 2D
Technique
Cold Drawing or Hot Rolled or Casting
Packing
Standard Seaworthy Package or according to customer's requirements
Delivery Time
within 7-21 working days after reveiving the deposit or according to your order quantity
Package
Plywood Case/Pallet or Other Export Package Suitable for Long Distance Shipping





Chemical composition and mechanical properties of stainless stee coils

Grade
Chemical composition(%)
Mechanieal performece
C
SI
MN
P
S
NI
CR
MO
Hardness
201
≤0.15
≤1.00
5.5/7.5
≤0.060
≤0.03
3.5/5.5
16/18
-
HB≤241HRB≤100HV≤204
304
≤0.08
≤1.00
≤2.00
≤0.045
≤0.03
8.0/11
18/20
-
HB≤187HRB≤90HV200
316
≤0.08
≤1.00
≤2.00
≤0.045
≤0.03
10/14
16/18
2/3
HB≤187HRB≤90HV200
316L
≤0.03
≤1.00
≤2.00
≤0.045
≤0.03
10/14
16/18
2/3
HB≤187HRB≤90HV200
410
≤0.15
≤1.00
≤1.25
≤0.060
≤0.03
≤0.60
11.5/13.5
-
HB≤183HRB≤88HV200
430
≤0.12
≤1.00
≤1.25
≤0.040
≤0.03
-
16/18
-
HB≤183HRB≤88HV200
Our factory

PUMAO STEEL CO,.LTD ,a professional metal raw material supplier. We have more than 10 years of experience in manufacturing stainless steel and carbon steel , which is located in Wuxi, the largest stainless-steel processing center in China. We provide stainless steel, carbon steel and aluminum. Our products include 200/300/400 series and duplex stainless steel coil and sheet, and regular stock are 10,000 tons. PUMAO has owned factory and provides a one-stop service for cutting, forming and surface processing of metal products. We are the leading distributor of POSCO-ZPSS and ESS , also cooperates with TISCO, CHENGDE, TSINGSHAN, YONGJIN, HONGWANG, JISCO, Mills. We have more than 10 years' experience in serving stainless steel industries, including green energy, kitchenware and household appliance, petro-chemical, shipbuilding, transit equipment like Auto and CRH(China Railway High-speed),and medical facility etc., our products are also widely used for heat-exchange pipe and tube,cookware and tableware, pressure vessel, petrochemical tank, precision electronic instrument, solar water heater, Automobile parts, etc.



Welding Stainless Steel Structural Sections Equal Stainless Steel Angle Bar 304 304N S32305 410 204C3 0Welding Stainless Steel Structural Sections Equal Stainless Steel Angle Bar 304 304N S32305 410 204C3 1



FAQ

Q1: Can you send samples?
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.

Q2: What product information do I need to provide?
A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.

Q3: It's my first time to import steel products, can you help me with it?
A:Sure,we have agent to arrange the shipment, we will do it together with you.

Q4: What ports of shipment are there?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.

Q5: What about product prices information?
A:Prices various according to periodic price changes of raw materials.

Q6: What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.

Q7: Do you provide custom made Products service?
A: Yes,if you have your own design , we can produce according to your specification and drawing.

Q8: What are the certifications for your products?
A:We have ISO 9001, MTC, third parties’ inspections are all available such SGS, BV ect.

Q9: How long does your delivery time take?
A:In general, our delivery time is within 7-15 days, and may be longer if the quantity is extremely large or special circumstances occur.

Q10: How many countries you already exported to?
A:We have exported to America, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana,somalia and other African countries.Our export experience is rich, we familiar with different market demands, can help customers avoid a lot of trouble.

Q11: Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.

Q12: Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed and customers can appoint third parties to inspect the products before loading too.



Q13: How to pack the products? A: Standard export sea-worthy packaging, the inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion and various climate changes during ocean transportation.



Q14: What is your working time? A:In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry in the coming working day.
