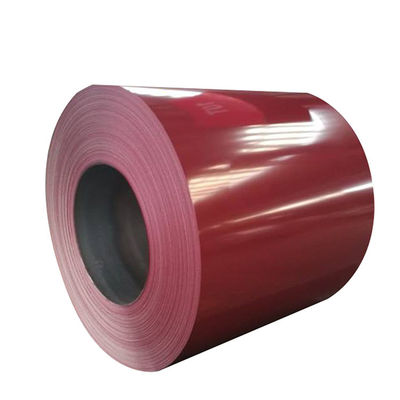

Colour Coated PPGI Steel Sheet Coils SGCC Prepainted 26 Gauge Cold Rolled 4.0mm
| Place of Origin | Shandong,China |
|---|---|
| Brand Name | TISCO |
| Certification | CE, ROHS, JIS, GS, ISO9001 |
| Model Number | ASTM, AiSi ASTM |
| Minimum Order Quantity | 1 Ton |
| Price | $580.00/Tons 3-24 Tons |
| Packaging Details | 3 layers of packing. Inside is kraft paper, Middle is water plastic film and ouside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve. |
| Delivery Time | 7-14 working days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 Ton/Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | PPGI Coil | Color | Blue |
|---|---|---|---|
| Standard | AISI | Technique | Cold Rolled |
| Width | 600mm-1250mm | Sample | Available |
| Application | Building,Construction | Coil Weight | 3-8 Tons |
| High Light | PPGI Colour Coated Steel Sheet Coils,26 Gauge PPGI Steel Sheet Coils,4.0mm PPGI Steel Sheet Coils |
||
Product Description
PRODUCT DESCRIPTION
PPGI Coil Colour Coated Steel Sheet Coils SGCC Prepainted 26 Gauge Cold Rolled
A-不锈钢原材料专家:
Production Process of PPGI Coil
The most commonly used method is a double-side and twice-coating process. It means the back and topsides will be painted twice. Let’s review step by step.
1. Pre-treatment
GI coils are uncoiled and welded first. Then go through the inlet looper to be cleaned and pre-treated continuously (such as degreasing). After that, a layer of chemical conversion coating is formed on the surface.
2. Painting Process
The back and top sides of the steel coil will be painted and dried. Generally, the top coating will be thicker, say 10-35 μm. The thickness of the coating can be customized according to your requirements.
3. Cool down the coated steel coil.
4. Quality control.
The colored coils will be tested by professional equipment and specialized persons.
5. Roll the qualified steel coils up for sale.
Advantages
PPGI Coils is a product made of hot-dip galvanized sheet, hot-dip aluminium-zinc sheet, electro-galvanized sheet, etc. as the substrate, after surface pretreatment (chemical degreasing and chemical conversion treatment), one or several layers of organic paint are coated on the surface, and then baked and solidified
Product Description
| Grade | CGCC,CGCH,G550,DX51D,DX52D,DX53D |
| Thickness | 0.12-4.0mm |
| Width | 600-1500mm |
| Length | 1000-12000mm |
| Zinc Coating | Z40-600 g/m2 |
| Coating Thickness | Top-15-35, Back 5-15 |
| Color | RAL Color |
| Surface |
Matt,High gloss,Color with two sides,Wrinkle, Wooden color,Marble |
| Coil Weight | 3-8 tons |
Chemical Composition
| Grade | C≤ | Mn | P≤ | S≤ | Si≥ | Cr≤ | Cu≤ | Mo≤ | Ni≤ | V≤ |
| A | 0.25 | 0.27-0.93 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
| B | 0.30 | 0.29-1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
| C | 0.35 | 0.29-1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
Product Detail
Company Information
Certification
FAQ
Q1:Can you send samples?
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.
Q2:What product information do I need to provide?
A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.
Q3:It's my first time to import steel products, can you help me with it?
A:Sure,we have agent to arrange the shipment, we will do it together with you.
Q4:What ports of shipment are there?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.
Q5:What about product prices information?
A:Prices various according to periodic price changes of raw materials.
Q6:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.
Q7.Do you provide custom made Products service?
A: Yes,if you have your own design , we can produce according to your specification and drawing.
Q8:What are the certifications for your products?
A:We have ISO 9001, MTC, third parties’ inspections are all available such SGS, BV ect.
Q9:How long does your delivery time take?
A:In general, our delivery time is within 1-15 days, and may be longer if the quantity is extremely large or special circumstances occur.
Q10: How many countries you already exported to?
A:We have exported to America, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana,somalia and other African countries.Our export experience is rich, we familiar with different market demands, can help customers avoid a lot of trouble.
